Commercial Building

‘The Lock Shop’, Carlton Hall

134 Vivian Street, Te Aro, Wellington
Map
  • Constructed

    1899

  • Architect(s)

    Edward Fraser Jones

  • Builder(s)

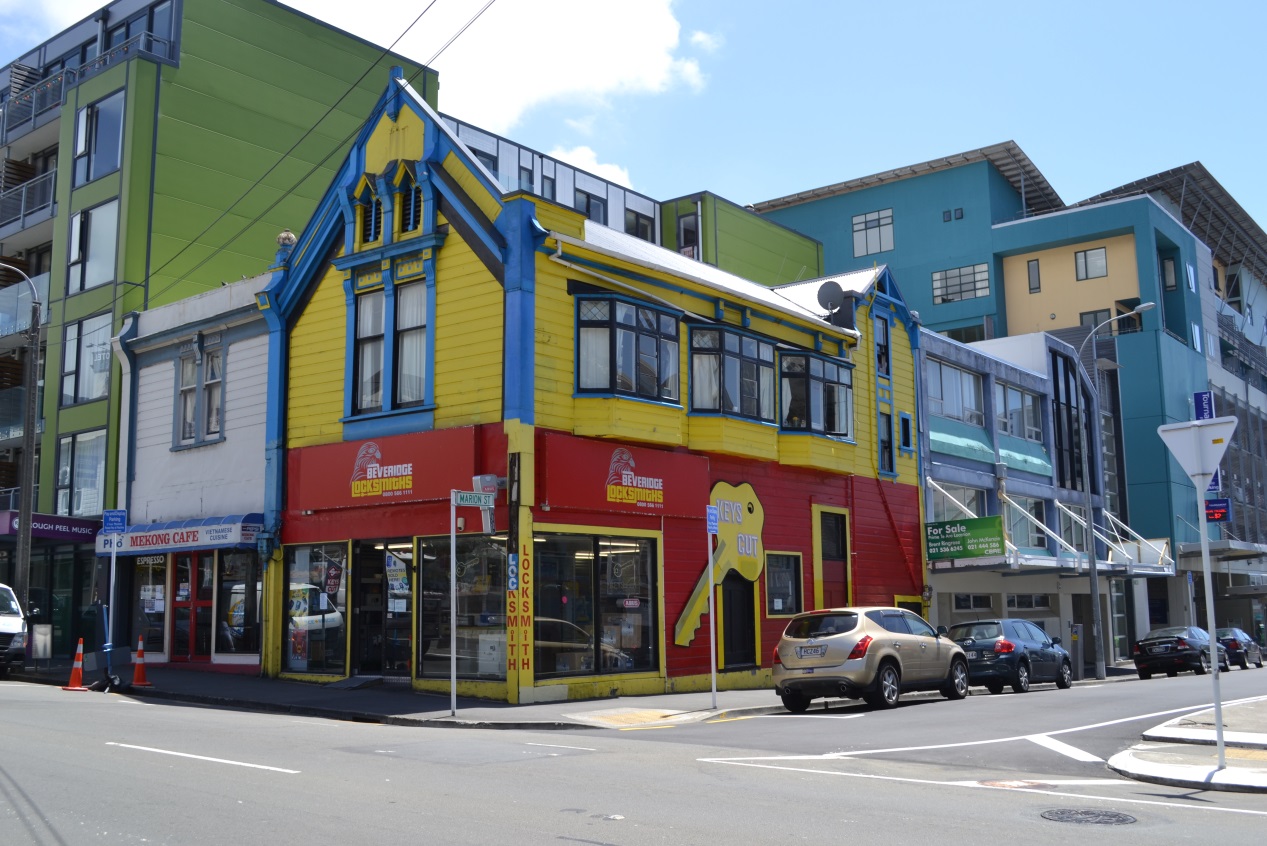

  • 134 Vivian Street is a much altered Victorian building that was designed to house a shop/dwelling, ‘lock-up’ shop, and private hall. Although many of the original features have been lost, the remnants of the original design show that this was once a splendid, if somewhat eclectic, Victorian commercial development.

    The building has historic value for its association with the strong growth and development of Cuba Street during the Edwardian period, which resulted in the building of many fine commercial buildings.

    The building contributes to the Cuba Street Heritage Area.

  • close History

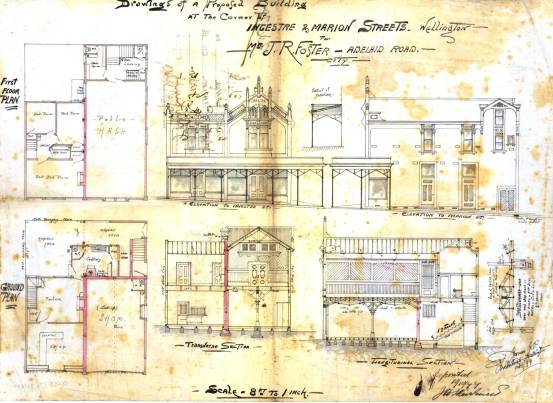

    • This distinctive two storey corner building was designed for Mr. J. R. Foster, a grain and provision merchant of Newtown, by local architect E. Fraser Jones. The permit and designs of the building are dated 1899, and the applicant was John. H. Fairhurst, a local builder.

      The building was designed as three separate units: A shop/residence with an entrance to Ingestre (Vivian) Street, a single ‘lock-up’ shop on the corner of Marion and Ingestre Streets, and a public hall, named the ‘Carlton Hall’ above the corner shop. The building’s street façade to Ingestre Street was designed in a vernacular timber shop/residence style, overlaid with an eclectic mix of applied decoration that included Gothic pointed-arch louvres, and exotic (perhaps Moorish or even minaret-inspired) finials. Although most of these original features have been lost, the remnants of the original design show that this was once a splendid, if somewhat eclectic, Victorian commercial development.

      The first floor Carlton Hall hosted a number of different events, from music and drama, to an ‘Olympic Club’, where people could participate in regular sessions of ‘boxing and weight lifting taught by competent instructors’ as well as wrestling and sword exercises. The building also housed a number of different businesses over the years ranging from a sweet shop, doctor’s practice, and a billiards room.

      The building has been much-altered. The original shop-fronts, wrap-around verandah, most of the decorative parapet finials to Vivian Street, and the first floor windows and decorative barge detail to Marion Street have long been lost, removed or replaced with modern components. The three first-floor oriel windows to Marion Street are later additions, as is the barge detail to the minor gable. More recently the shop spaces have been occupied by restaurants and for the past 20 years the ‘Lock Shop’, while the upstairs has been converted to residential apartments.

    • Modifications close
      • 1899
      • Corner Ingestre Street and Marion Street [134 Vivian Street], shop and dwelling (00053:57:3614)
      • 1965
      • 134136 Vivian Street, building alterations (00058:418:C17869)
      • 1989
      • Vivian Street, business additions and alterations (00059:324:E18367)
      • 1989
      • Vivian Street, sign (00059:324:E18372)
      • 1989
      • Vivian Street, business additions and alterations – shop (00059:342:E18824)
      • 1990
      • Vivian Street, business additions and alterations – restaurant (00059:427:E21429)
      • 1991
      • Vivian Street, business additions and alterations (00059:491:E23536)
      • 1994
      • Vivian Street, sign (00060:183:6610)
      • 2000
      • Vivian Street, plumbing alteration (00078:2380:63496)
    • Occupation History close
      • unknown
      • Not assessed
  • close Architectural Information
    • Building Classification(s) close

      Not assessed

    • Architecture close

      This building at 134 Vivian Street was built as a mixed use commercial development. The westernmost unit on Vivian Street was two-storey shop/residence, the ground floor corner unit was a ‘lock-up’ shop, and the first floor housed a private hall.

      The exterior of the building was designed in a style that is typical of the many timber shop/residences that once lined Cuba Street, but the Vivian Street façade is overlaid with an eclectic mix of applied decoration that includes Gothic pointed-arch louvres, and exotic (perhaps Moorish or even minaret-inspired) finials. The corner of the building sits under a pronounced parapeted gable with a simple return gable further along on the Marion Street façade. The Marion Street façade has been altered and plain windows have been replaced with cantilevered bay windows at first floor level. Ornate matching verandahs and finials have also been removed from the building.

    • Materials close

      The construction is timber on concrete foundations and piles, with brick firewalls separating the three establishments. The timber of the ground floor was specified as Totara, all other timber being rimu. The roof was clad in corrugated iron.

    • Setting close

      This building is situated in the Cuba Street Heritage Area on the corner of Vivian and Marion Streets. The unique design of the building has made it a landmark for the Cuba Street precinct. This block contains an eclectic mixture of buildings, from nondescript large modern structures, to some significant heritage buildings at or near the Cuba Street intersection.


  • close Cultural Value

    134 Vivian Street is a much altered Victorian building that was designed to house a shop/dwelling, ‘lock-up’ shop, and private hall. Although many of the original features have been lost, the remnants of the original design show that this was once a splendid, if somewhat eclectic, Victorian commercial development.

    The building has historic value for its association with the strong growth and development of Cuba Street during the Edwardian period, which resulted in the building of many fine commercial buildings.

    The building contributes to the Cuba Street Heritage Area.

    • Aesthetic Value close
      • Architectural

        Does the item have architectural or artistic value for characteristics that may include its design, style, era, form, scale, materials, colour, texture, patina of age, quality of space, craftsmanship, smells, and sounds?

        134 Vivian Street is a much altered Victorian building that was designed to house a shop/dwelling, ‘lock-up’ shop, and private hall. Although many of the original features have been lost, the remnants of the original design show that this was once a splendid, if somewhat eclectic, Victorian commercial development.

      • Group

        Is the item part of a group of buildings, structures, or sites that taken together have coherence because of their age, history, style, scale, materials, or use?

        The building contributes to the Cuba Street Heritage Area.

      • Townscape

        Does the item have townscape value for the part it plays in defining a space or street; providing visual interest; its role as a landmark; or the contribution it makes to the character and sense of place of Wellington?

        The building is located on a prominent corner site, along a busy arterial route, and is a minor local landmark.

    • Historic Value close
      • Association

        Is the item associated with an important historic event, theme, pattern, phase, or activity?

        The building has historic value for its association with the strong growth and development of Cuba Street during the Edwardian period, which resulted in the building of many fine commercial buildings.

    • Scientific Value close
      • Archaeological

        Does the item have archaeological value for its ability to provide scientific information about past human activity?

        This building is included in the NZAA Central City Archaeological Area R2/270, is in an area known to have had pre 1900 human activity, and known to have sites of significance to Maori. The likelihood of archaeological materials being present is likely.

    • Social Value close
      • Identity Sense Of Place Continuity

        Is the item a focus of community, regional, or national identity? Does the item contribute to sense of place or continuity?

        This building is part of a group of Edwardian commercial buildings which contribute to the sense of place and continuity of the Cuba Street Heritage Area.

    • Level of Cultural Heritage Significance close
      • Authentic

        Does the item have authenticity or integrity because it retains significant fabric from the time of its construction or from later periods when important additions or modifications were carried out?

        Despite many modifications, the exterior of this building retains a significant amount of original material. This building has authenticity and integrity of materials, design, workmanship, and setting.

      • Local Regional National International

        Is the item important for any of the above characteristics at a local, regional, national, or international level?

        This building is of local importance for its contribution to the Cuba Street Heritage Area.

    • Local / Regional / National / International Importance close

      Not assessed

  • close Site Detail
    • District Plan Number

      16/ 322

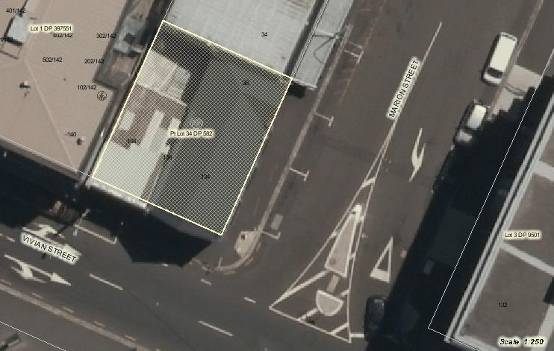

    • Legal Description

      Pt Lot 34 DP 582

    • Heritage New Zealand Listed

      N/A

    • Archaeological Site

      NZAA Central City Archaeological Area R27/270

    • Current Uses

      unknown

    • Former Uses

      unknown

    • Has building been funded

      No

    • Funding Amount

      Not applicable

    • Earthquake Prone Status

      Not Earthquake Prone
