Shell House (Former)
Transpower House
Shell House in 1960
National Library reference: Shell House building on The Terrace by Woodward Street, Wellington City. Further negatives of the Evening Post newspaper. Ref: EP/1960/1871-F. Alexander Turnbull Library, Wellington, New Zealand. http://natlib.govt.nz/records/30642958
-
Constructed
1958 - 61
-
-
Architect(s)
-
Builder(s)
-

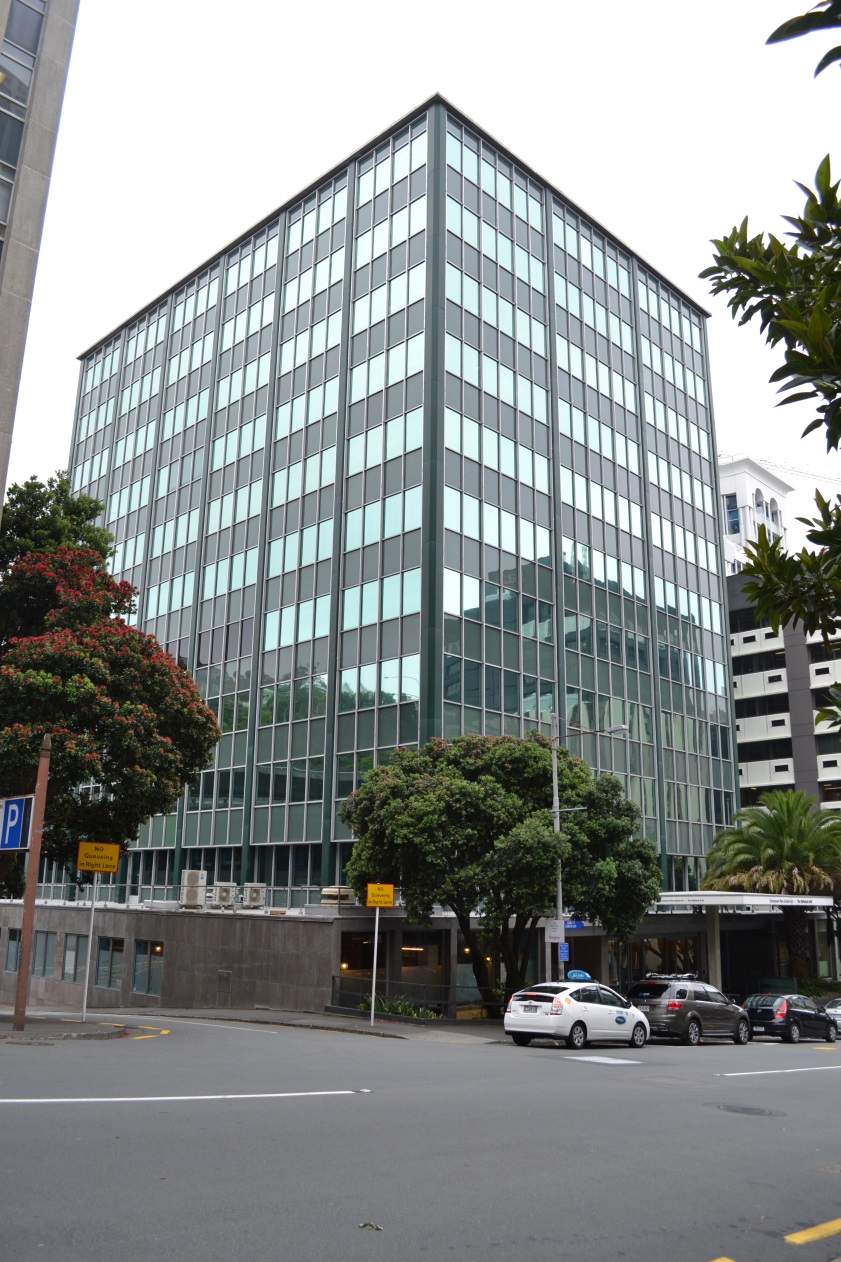

The former Shell House is both an elegant and an early example of a curtain-wall high-rise office building of the type that has come to dominate the streetscape of Wellington’s CBD. It is notable for the design of its podium and free-standing tower, and for its well-detailed external cladding system. (The current cladding is a good facsimile of the original and dates to 2008).
The building was once a landmark on The Terrace and stood in strong contrast to the large timber houses that were once characteristic of the area. The former Shell House was a precursor to the modern high-rise, curtain wall buildings that now surround it, and the building continues to make a positive contribution to the streetscape.
The building has an historic association with Shell New Zealand Ltd, a major multi-national company that has been a significant commercial force in New Zealand.
-
Downloadable(s)
-
close
History
-
The Terrace was still emerging from its long period as one of the city’s pre-eminent residential streets when Shell House was completed in 1960. As a tall glass tower on an elevated site and, in the manner of its nearby predecessor Massey House (1955-57) which also has a facade on The Terrace, Shell House was a landmark in the central city.
The building was erected for the Shell Company’s New Zealand office. It had been occupying offices in the AMP building, Customhouse Quay. The architects were the Wellington branch of the Australian firm of Stephenson and Turner and the permit was granted on 10 July 1958. The principal contractors were Wilkins and Davies Construction Co. and the estimated price was £920,000.
When it was completed in 1961 the building was said to have been the tallest office building in New Zealand. It stood at 46 metres or 14-storeys high, and was the country’s first fully air-conditioned building. Other, once innovative, features that are now common practice in the construction and fit-out of commercial office buildings include the prefabricated ‘floors, steel framing, curtain walling, external facings, ceilings and internal partitions.’
Shell New Zealand continued to occupy the building until 1999 when it moved to its new head office on Queen’s Wharf. The former Shell House building is now home to Transpower New Zealand Ltd - the State Owned Enterprise (SOE) that owns and operates the high voltage electricity transmission system otherwise known as the National Grid.
Although the prominence of the former Shell House has been reduced by the proliferation of high-rise commercial buildings that now line both sides of The Terrace, it continues to stand out as a quality building of its time; setting a standard that many of its later high-rise neighbours have noticeably failed to reach.
-
Modifications
close
-
1945
-
Land purchased on The Terrace CT 487/181, 487/182
-
c.1950
-
Shell approached the council re: proposed motorway WCC Archives file 6/2051, part 1.
-
c.1952
-
First proposals for development. Some land taken for the purposes of forming the motorway. WCC Archives 6/2051, part 1.
-
1958
-
Consent application 00058_77_C3780
-
1961
-
Construction complete
-
1964
-
(00058:337:C14478); 96 The Terrace, strong-room
-
1992
-
Part ground floor modified to form carpark WCC Archives file 6/2051 part 2
-
2003
-
Refurbishment, strengthening and interior fit-out.
-
2004
-
additions and alterations SR111725
-
2008
-
Re-clad SR175244
-
2011
-
3.1 - Commercial - Transpower House - Strengthening work to existing curtain wall facade to resist wind load SR 212247
-
-
Occupation History
close
Not assessed
-
-
close
Architectural Information
-
Building Classification(s)
close
Not assessed
-
Architecture
close
Shell House remains a landmark commercial building in Wellington, and has been compared to Skidmore, Owings and Merrrill’s Lever House, New York (1951-52). Its form was that of a podium surmounted by a 10-storey tower that was set back from the street edge, and from its (once) domestic neighbours to the north and south of the building.
The lower ground floor provided car-parking, plant rooms and a printing room. The main entrance lobby was on the ground floor and once included a large mural, exhibition area, 100-seat theatrette (now removed), film library and archives store. The first floor was set aside for staff recreation and included a lounge, kitchen and dining room with a roof deck. The floors above the podium were air-conditioned office floors and a managerial suite was located in the upper floors along with a caretaker’s flat, incinerator room and air-conditioning plant.
In the building’s construction extensive use was made of prefabricated elements. It has a steel frame and a reinforced-concrete core for seismic loading, the structural engineering design being carried out by Rankine and Hill, Consulting Engineers. The building’s main feature of note is its curtain wall, one of the first in New Zealand. This wall is structurally independent of the concrete shell and consists of aluminium frames glazed with units of heat-absorbing glass and green opaque glass spandrels. The clean-lined quality of the curtain wall, also seen in Massey House, was revolutionary at the time and brought to New Zealand ‘a scaled-down Kiwi version of the glass skyscraper of America’, as architect David Mitchell put it. It was also the first fully air conditioned building in New Zealand.
The interior preserves the open-plan movable-partition format that was also a novel feature in 1960 but seems dated today. A contemporary mural in the main entrance foyer helps to establish this space as one of some aesthetic merit, and one typical of its time.
-
Materials
close
Reinforced concrete structure
Curtain wall cladding
-
Setting
close
Shell House is an early example of the type of curtain wall, high-rise office buildings that have come to characterise The Terrace.
-
Building Classification(s)
close
-
close
Cultural Value
The former Shell House is both an elegant and an early example of a curtain-wall high-rise office building of the type that has come to dominate the streetscape of Wellington’s CBD. It is notable for the design of its podium and free-standing tower, and for its well-detailed external cladding system. (The current cladding is a good facsimile of the original and dates to 2008).
The building was once a landmark on The Terrace and stood in strong contrast to the large timber houses that were once characteristic of the area. The former Shell House was a precursor to the modern high-rise, curtain wall buildings that now surround it, and the building continues to make a positive contribution to the streetscape.
The building has an historic association with Shell New Zealand Ltd, a major multi-national company that has been a significant commercial force in New Zealand.
-
Aesthetic Value
close
-
Architectural
Does the item have architectural or artistic value for characteristics that may include its design, style, era, form, scale, materials, colour, texture, patina of age, quality of space, craftsmanship, smells, and sounds?
The former Shell House is both an elegant and an early example of a curtain-wall high-rise office building of the type that has come to predominate the streetscape of Wellington’s CBD. It is notable for the design of its podium and free-standing tower, and for its well-detailed external cladding system. (The current cladding is a good facsimile of the original and dates to 2008).
-
Townscape
Does the item have townscape value for the part it plays in defining a space or street; providing visual interest; its role as a landmark; or the contribution it makes to the character and sense of place of Wellington?
The building was once a landmark on The Terrace and stood in strong contrast to the large timber houses that were once characteristic of the area. The former Shell House was a precursor to the modern high-rise, curtain wall buildings that now surround it, and the building continues to make a positive contribution to the streetscape.
-
- Historic Value close
-
Scientific Value
close
-
Archaeological
Does the item have archaeological value for its ability to provide scientific information about past human activity?
Central City NZAA R27/270 Central City NZAA R27/270, near a Maori Site of Significance (Kumutoto Kainga)
-
Technological
Does the item have technological value for its innovative or important construction methods or use of materials?
The building has technological value as an innovative early high-rise office building that was known as the first fully air-conditioned office building in New Zealand, as well as for its well detailed curtain- wall system, its extensive use of prefabrication techniques and its innovative seismic design.
-
-
Social Value
close
-
Identity Sense Of Place Continuity
Is the item a focus of community, regional, or national identity? Does the item contribute to sense of place or continuity?
The building’s exterior has had few intrusive recent additions or alterations over the past 50 years and contributes to the sense of place and continuity of The Terrace.
-
-
Level of Cultural Heritage Significance
close
-
Authentic
Does the item have authenticity or integrity because it retains significant fabric from the time of its construction or from later periods when important additions or modifications were carried out?
Shell house retains much of its original built fabric with the notable exception of the cladding that has been recently replaced with a good facsimile and the building interiors that have been recently refurbished.
-
Rare
Is the item rare, unique, unusual, seminal, influential, or outstanding?
Shell House is an early and influential example of a curtain-wall high-rise commercial building
-
Representative
Is the item a good example of the class it represents?
Shell House is a good representative example of a curtain-wall high-rise commercial building.
-
-
Local / Regional / National / International Importance
close
Not assessed
-
Aesthetic Value
close
-
close
Site Detail
-
District Plan Number
17/ 291
-
Legal Description
Pt Lots 1 and 2 DP 12193
-
Heritage New Zealand Listed
Not registered
-
Archaeological Site
Central City NZAA R27/270, near a Maori Site of Significance (Kumutoto Kainga)
-
Current Uses
unknown
-
Former Uses
unknown
-
Has building been funded
No
-
Funding Amount
Not applicable
-
Earthquake Prone Status
Not Earthquake Prone
-
-
close
Additional Information
-
Sources
close
- Balasoglou, John (ed). Stephenson and Turner. Auckland: Balasoglou Books. 2006.
- Giblin, Alan. ‘Shell House: Conservation Report’ unpublished conservation prepared for Arch 273, (1999)
- Leach, Andrew. ‘Shell House (now Transpower House)’ in Julia Gately (ed) Long Live the Modern: New Zealand’s New Architecture 1904 – 1984. Auckland: Auckland University Press. 2008.
- ‘Office Building for Shell Co. of New Zealand’ WCC Archives Permit C3780
- Shaw, P., Norman and Morrison, R. New Zealand Architecture Auckland: Hodder and Stoughton. 1991.
- ‘Shell House building on The Terrace by Woodward Street, Wellington City’. Further negatives of the Evening Post newspaper. Ref: EP/1960/1871-F. Alexander Turnbull Library, Wellington, New Zealand.
- WCC Heritage Inventory 2001 ref Terr4
-
