Commercial Building
Cuba Mall Butchery Hellabys, Iko Iko
-
Constructed
1902
-
Heritage Area
-
Architect(s)
-
Builder(s)
PD Davis
-
Designed by the notable Wellington architect John Swan, this two storey Edwardian commercial building has a well proportioned façade that features a restrained palette of Classical details and decoration.
This building is part of a group of Edwardian commercial buildings on Cuba Street which contribute to the sense of place and continuity of the Cuba Street Heritage Area.
The first floor façade of this building remains largely intact with a high level of original detailing, despite modifications to the shop front and the addition of a pediment.
-
Downloadable(s)
-
close
History
-
This building was designed by architect John Swan for Phillip D. Davis, the owner-builder. The permit was issued in March 1902. In January 1902 the architect sought tenders for the purchase and removal of the existing buildings on the site. The specifications stipulated that the existing buildings (occupied by a pawnbroker) were to be removed within 12 days after the date of acceptance of the tender.

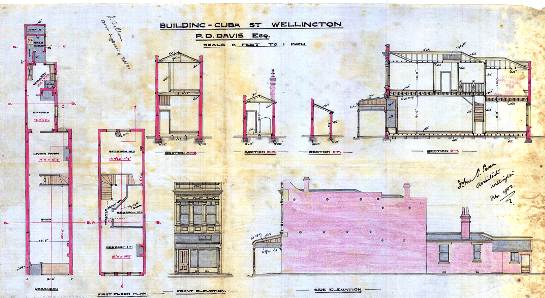

This building was built as a simple shop-residence on a narrow inner city site. The original plan for the building incorporated a single shop on the ground floor, with a living room, kitchen, scullery and bathroom behind. There were three bedrooms on the first floor. A skylight was built above the upstairs landing.
Little information is known about the early history of this building or of the owner-builder Phillip Davis. The earliest known occupant was the Diamond Confectionery Company, in 1910. In the early 1920s the shop was tenanted by Herbert Stanbridge, fruiterer and grocer. In 1927 jeweller Victor Brownson opened a jewellery store in the ground floor shop and advertised to let the three rooms above as workshops, offices, or living-rooms. Brownson’s lease expired in 1930 and his shop fixtures were auctioned. From approximately 1935 to 1995 the premises was occupied by a succession of butchers.
Various alterations have been made to the building over time to suit different tenants (see section 1.2). The most obvious changes to the original façade include the remodelled shop front and verandah on the ground floor. The first floor facade is unchanged except for the addition of a triangular pediment to the parapet which was added sometime in the late 1990s. It is probable this was added in 1996 when the building owner received a grant from the WCC Earthquake Risk Building and Heritage Fund “to assist with the restoration of the parapet at 118 Cuba Street” , but the pediment is a modern fantasy that has no historic precedent.
-
Modifications
close
-
unknown
-
Various alterations have been made to the building over time.
-
1902
-
Construction (00053:81:4713)
-
1930
-
Verandah (00056:116:B10519)
-
1945
-
Damage by earthquake (00009:2145:50/1054/417)
-
1946
-
Earthquake repairs (to the rear wall only) (00056:316:B24822)
-
1956
-
Shop alterations for City Meat Co. (00056:545:B40158)
-
1963
-
Alterations including new staircase and external doors (create butcher shop) (B40158, 00058:311:C13527)
-
1966
-
Extension to connect with 116 Cuba Street, building alterations - offices (00058:458:C19675)
-
1977
-
Butcher shop facilities at rear of property (00058:1125:C48636)
-
1985
-
Alter shop window (00059:0:D1501)
-
1989
-
Convert 1st floor to flat (00059:355:E19245)
-
1994
-
Seismic strengthening, refurbish butcher shop (00060:142:5223)
-
1996
-
Parapet ‘restored’ (WC Records 1041-06-CUB118)
-
-
Occupation History
close
-
1910 - 1916
-
Diamond Confectionery Company (Stones 1910-11, 1915-16)
-
1920 - 1925
-
Herbert Stanbridge, fruiterer and confectioner (Stones 1920, 1925)
-
1927 - 1930
-
Victor Brownson, jeweller
-
1935 - 1962
-
City Meat Company Ltd (Stones 1935, 1940, 1945, Wises 1950-51, 1955, 1961-62)
-
1967 - 1980
-
Gear Meat Company (Stones 1967-68, 1971-72, 1975, 1980)
-
1990
-
Steiner's Butchery (Wises 1990)
-
1985
-
Not Listed
-
1995
-
Cuba Mall Butchery. “For a number of years now the Cuba Mall Butchery has occupied the shop at street level”.
-
1998 - 2012
-
Iko Iko gift store
-
-
-
close
Architectural Information
-
Building Classification(s)
close
Not assessed
-
Architecture
close

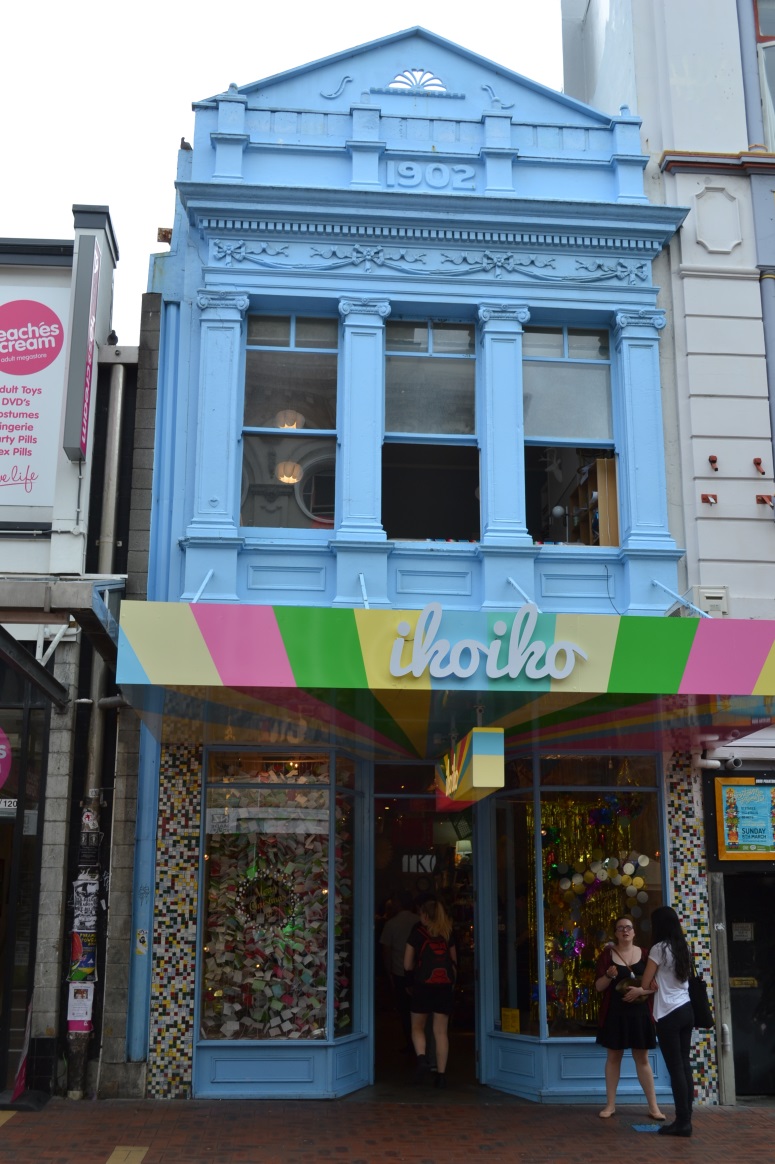

118 Cuba Street is a two storey Edwardian commercial building with a well proportioned façade that features a restrained palette of Classical details and decoration. The building was originally constructed as a simple two storey shop-residence built on a narrow inner city site. The shopfront and verandah on the ground floor have been remodelled and the shopfront is a good facsimile of a traditional design. The triangular pediment at the parapet is also a modern alteration added in the late 1990s. Although the addition of this faux-heritage element is confusing, it does have some charm and now lends the building something of the appearance of a small Greek temple.
The original decorative scheme for the façade consists of four regular Ionic pilasters that stand on small pedestals, and this group of columns are critical to the success of the modern pediment above. The frieze above has a decorative strip of moulded festoons, with a dentilled cornice above. The parapet consists of shallow piers tied together by string courses. The three first-floor windows are double-hung, with square heads. Although this is a small building, the architect has shown his usual skill in getting the proportions right and not overdoing the Classical vocabulary. This building makes a distinctive contribution, although on a small scale, to the Cuba Street precinct.
The current vibrant, sky-blue colour scheme, the retro mosaic tiled panels at ground floor level, and the verandah signage all contribute to the character of this carefully crafted Edwardian commercial building.
-
Materials
close
The construction is load-bearing brick masonry on concrete foundations and piles. Floor joists and roof trusses are timber. The roof is clad in corrugated iron.
-
Setting
close
This building (no. 116) and its neighbour (no. 118) are a pair of Edwardian neo-Classical buildings. This pair of buildings makes a strong contribution to the architectural, streetscape and heritage values of the block. Next to no. 116 is the Left Bank – an extension to Cuba Mall.
To the south of no. 118, the next pair of buildings are modern and do not contribute to the heritage or streetscape values of the block – the pastel-coloured concrete block Hallensteins building, and the Tattoo City building. The tallest building on the block, adjoining Tattoo City, is no. 126, a tall four-storey building constructed in 1907. At the southern end of the block is the former Gear Meat building, constructed in 1896. Both of these buildings make important contributions to the architectural, heritage and streetscape qualities of the block.
-
Building Classification(s)
close
-
close
Cultural Value
Designed by the notable Wellington architect John Swan, this two storey Edwardian commercial building has a well proportioned façade that features a restrained palette of Classical details and decoration.
This building is part of a group of Edwardian commercial buildings on Cuba Street which contribute to the sense of place and continuity of the Cuba Street Heritage Area.
The first floor façade of this building remains largely intact with a high level of original detailing, despite modifications to the shop front and the addition of a pediment.
-
Aesthetic Value
close
-
Architectural
Does the item have architectural or artistic value for characteristics that may include its design, style, era, form, scale, materials, colour, texture, patina of age, quality of space, craftsmanship, smells, and sounds?
This two storey Edwardian commercial building has a well proportioned façade that features a restrained palette of Classical details and decoration.
-
Group
Is the item part of a group of buildings, structures, or sites that taken together have coherence because of their age, history, style, scale, materials, or use?
This building can be read, along with 116 Cuba Street, as a pair of Edwardian neo-Classical buildings. This pair of buildings makes a strong contribution to the architectural, streetscape and heritage values of the block.
This building is part of a group of Edwardian commercial buildings on Cuba Street which contributes positively to the Cuba Street Heritage Area.
-
-
Historic Value
close
-
Association
Is the item associated with an important person, group, or organisation?
This building has historic value for its association with the notable Wellington architect John Swan.
-
Association
Is the item associated with an important historic event, theme, pattern, phase, or activity?
This building is associated with the strong growth and development of Cuba Street during the Edwardian period, which resulted in the building of many fine commercial buildings.
-
- Scientific Value close
-
Social Value
close
-
Identity Sense Of Place Continuity
Is the item a focus of community, regional, or national identity? Does the item contribute to sense of place or continuity?
This building is part of a group of Edwardian commercial buildings on Cuba Street which contribute to the sense of place and continuity of the Cuba Street Heritage Area.
-
-
Level of Cultural Heritage Significance
close
-
Authentic
Does the item have authenticity or integrity because it retains significant fabric from the time of its construction or from later periods when important additions or modifications were carried out?
The first floor façade of this building remains largely intact with a high level of original detailing, despite modifications to the shop front and the addition of a pediment.
-
Local Regional National International
Is the item important for any of the above characteristics at a local, regional, national, or international level?
This building is of local importance, as it contributes to the Cuba Street Heritage Area.
-
Representative
Is the item a good example of the class it represents?
The building is representative of the architecture and history found in Cuba Street.
-
-
Local / Regional / National / International Importance
close
Not assessed
-
Aesthetic Value
close
-
close
Site Detail
-
District Plan Number
16/ 79.2
-
Legal Description
Pt Sec 177 Town of Wellington
-
Heritage New Zealand Listed
7209
-
Archaeological Site
None
-
Current Uses
unknown
-
Former Uses
unknown
-
Has building been funded
No
-
Funding Amount
Not applicable
-
Earthquake Prone Status
124 Notice
-
-
close
Additional Information
-
Sources
close
- Stones 1910-11, 1915-16
- WC Records, 1041-06-CUB118
- Wellington City Council, Cuba Street Heritage Area spreadsheet (blocks 1-3). (Wellington City Council: Unpublished report, prepared for Plan Change 48, 2006).
- Wellington.co.nz
- Historic Places Trust, “Swan, John Sydney”, Professional Biographies. Accessed 18 June 2012.
- Wellington City Council, “118 Cuba Street”, Wellington Heritage Building Inventory 2001: Non-Residential Buildings. (Wellington City Council, 2001), CUBA 11.
- Wellington City Council, 1995 Heritage Inventory
- Michael Kelly and Russell Murray, Cuba Street Heritage Area Report. (Wellington City Council: Unpublished report, prepared for Plan Change 48, 2006).
- Newspapers: Evening Post, Volume LXIII, Issue 16, 20 January 1902, Page 7
- Newspapers: Evening Post, Volume C, Issue 145, 16 December 1920, Page 5
- Newspapers: Evening Post, Volume CIV, Issue 99, 24 October 1927, Page 2
- Newspapers: Evening Post, Volume CIV, Issue 125, 23 November 1927, Page 4
- Newspapers: Evening Post, Volume CX, Issue 112, 8 November 1930, Page 16
- John S Swan, “118 Cuba Street, shop and dwelling”, 05 March 1902, 00053:81:4713, Wellington City Archives.
